Equipment Technology Fangfang Air Compressor Reform Fang Chaoyu Anhui Anqing City Hongqi Cement Factory Two 308 oil-lubricated air compressors were installed in the factory in June 1993 when the rotary kiln was technically expanded and expanded. It is mainly used for 3 , 8 glass fiber bag dust collector coal grinding elbow 05524 bag dust collector cylinder and cyclone preheater blowing and providing gas source for cleaning pipeline ash.
Since the air compressor has been in use for 7 years, the process structure is backward, the energy consumption is high, the daily lubrication and maintenance costs are high, and four post personnel are responsible for the operation. In order to reduce production costs, save energy and reduce consumption, we have carried out an update.
1 Organize relevant engineering and technical personnel to conduct on-site testing on multiple occasions, and obtain necessary technical data, adjust and add some gas supply pipeline valves; all oil-free lubrication air compressors, instead of two 308 oil-lubricated air compressors.
The oil-free lubrication air compressor does not need to be filled with lubricating oil during operation, the maintenance cost is low, and the parts supply is quick and convenient. It can be turned on and off according to the set pressure. No need for full-time staff to operate and maintain. Since the two air compressors were put into operation in April 2001, they have been in good condition and have not experienced any faults. They can better meet the requirements of the production process, reduce energy consumption and improve economic efficiency.
Project air compressor specification model power part motor power annual electricity fee kW yuan quantity annual cost kgd yuan maintenance cost yuan personnel salary yuan annual cost yuan technical reform before technical reform cost savings According to the above calculation data comparison analysis, secondary investment only 28,164,000 Yuan, and the annual cost savings is 94,700 yuan, which fully demonstrates that the transformation investment is less effective, and the personnel are reduced, the management link is reduced, and good economic benefits are generated.
3 Jia 0.910 all oil-free lubrication air compressor used for cyclone preheater blowing, slightly insufficient gas supply. It is now ready to add a gas tank to solve it.

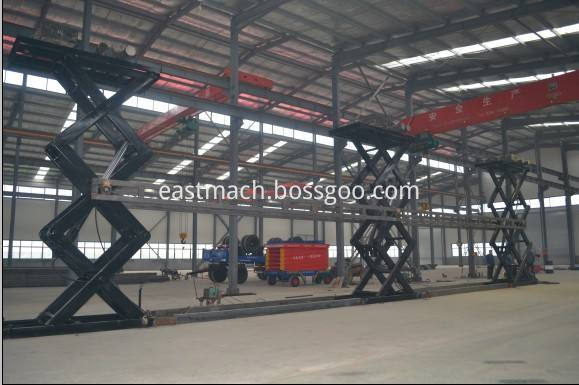

Hydraulic Stage Lift:
Used Large Club Lift has the function of lifting, rotating, tilting multiple functions.
Drama Theater Lift Platform is to improve the effect of the recent stage equipment. Also has the self-locking, interlocking, mechanical limit control functions. Then the stage Lift platform is safe and stable and reliable.
Lift Up, Stop and Lower of Revolving Stage Lift Platform could be realized at each control point. The lift platform could stop at the accurate loaction point.
Smooth working condition,high load capacity, safe and reliable. The overload protection devices are
available and meanwhile the hydraulic system has the anti-drop function when any failure happens. Power
Supply of Car Display Stage Lift Table is from local power sources.

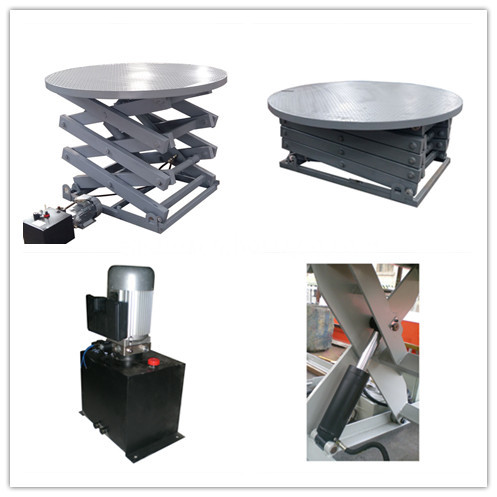

Configuration for High Quality Revolving Car Display Stage Lift:
1. Platform Material: rectangular tube + checkered anti-slip plate.
2. Support scissors: high strength Manganese Steel.
3. Hydraulic system: 380V or 220v or as your request.
4. Hydraulic cylinder: sets high precision wear-resisting cylinders with locking device for fall protection.
5. Piston Rod: hard chromium plating surface.
6. High-pressure oil pump: from Italy or Chinese famous brand.
7. Hydraulic pipe: high pressure pipe with double expanded metal protected.
8. Hydraulic oil: summer 46#, winter 32#.
9. Controller: 1 control box below, 1 hand controller above platform.
Application Area:
Hydraulic Stage Lift is widely used in the assembly hall, cinemas, theaters, multifunction hall, studio, culture and sports venues, hotels, and other cultural entertainment places.
If you have any questions, please contact with us directly. Hydraulic Stage Lift are produced with High Quality and Good Appearance. Welcome you can visit our Factory. For inqury, Please send mail directly to us.
Hydraulic Stage Lift,Hydraulic Scissor Lift Stage,Rotating Hydraulic Scissor Stage Lift,Adjustable Hydraulic Stage Lift
