1. Application range
It is suitable for drying and cooling of powder and granular materials in chemical industry, pharmacy, chicken essence, food, dehydrated vegetable, grain and mineral industry. Such as: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, rose L, silk, soybean meal, grains, seeds, slag, sugar etc..
Food building materials: Wine trough, monosodium glutamate, sugar, salt, slag, watercress, seeds and so on.
It can also be used for material cooling, humidification and so on.
2. Working principle
Material from the feed inlet into the battery raw material Drying Machine, under the action of vibration material along the horizontal fluidized bed casting, continuous motion, hot air upward through the fluidized bed with wet material after heat exchange, wet air after the cyclone dust discharged from the exhaust of 1:3. Dry material by discharge from import.
3. Product features
a. The dryer vibration source is driven by vibrating motor, stable operation, convenient maintenance, low noise, long service life.b. The fluidization of symmetry, no dead gaps and broken phenomenon, can obtain uniform drying, cooling products.
c. The battery raw material drying machine good adjustability, wide range of application. The thickness of the material layer and the moving speed in the machine and the full amplitude change can be stepless adjusted.
d. The battery raw material drying machine less damage to the surface of material can be used for fragile material drying, particles of irregular effect will not be affected.
CHANGZHOU SULI DRYING EQUIPMENT CO.,LTD.specializing in the production of Mixing Dryer, Spray Dryer, Granulation Dryer, Crushing Dryer, 3D Motion Mixer and V-shaped Mixer.
4.The parameters of Pharmaceutical chemical dryer
|
Model |
Fluidized bed area |
Inlet air temperature |
Outlet air temperature |
Evaporation water capacity |
Motor |
|
|
Model |
Kw |
|||||
|
ZLG3×0.30 |
0.9 |
70-140 |
40-70 |
20-35 |
ZDS31-6 |
0.8×2 |
|
ZLG4.5×0.30 |
1.35 |
70-140 |
40-70 |
35-50 |
ZDS31-6 |
0.8×2 |
|
ZLG4.5×0.45 |
2.025 |
70-140 |
40-70 |
50-70 |
ZDS32-6 |
1.1×2 |
|
ZLG4.5×0.60 |
2.7 |
70-140 |
40-70 |
70-90 |
ZDS32-6 |
1.1×2 |
|
ZLG6×0.45 |
2.7 |
70-140 |
40-70 |
80-100 |
ZDS41-6 |
1.5×2 |
|
ZLG6×0.60 |
3.6 |
70-140 |
40-70 |
100-130 |
ZDS41-6 |
1.5×2 |
|
ZLG6×0.75 |
4.5 |
70-140 |
40-70 |
120-140 |
ZDS42-6 |
2.2×2 |
|
ZLG6×0.9 |
5.4 |
70-140 |
40-70 |
140-170 |
ZDS42-6 |
2.2×2 |
|
ZLG7.5×0.60 |
4.5 |
70-140 |
40-70 |
130-150 |
ZDS42-6 |
2.2×2 |
|
ZLG7.5×0.75 |
5.625 |
70-140 |
40-70 |
150-180 |
ZDS51-6 |
3.0×2 |
|
ZLG7.5×0.9 |
6.75 |
70-140 |
40-70 |
160-210 |
ZDS51-6 |
3.0×2 |
|
ZLG7.5×1.2 |
9 |
70-140 |
40-70 |
200-260 |
ZDS51-6 |
3.0×2 |

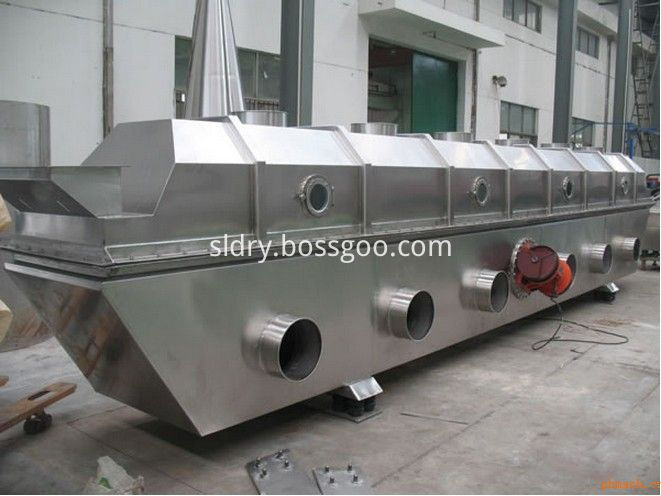

Vibrating Fluid Bed Dryer
