Disc Harrow is mainly used for cleaning stubbles before tillage and break soil after tillage in the wasteland of heavy clay soil; it can replace the plough machine for the first time operation on the dry cultivated land. There are three series of the product: light type, medium type, and heavy type. The working length from 2m to 5m matched with 60-150hp tractors to carry out the suspension and traction operation.
|

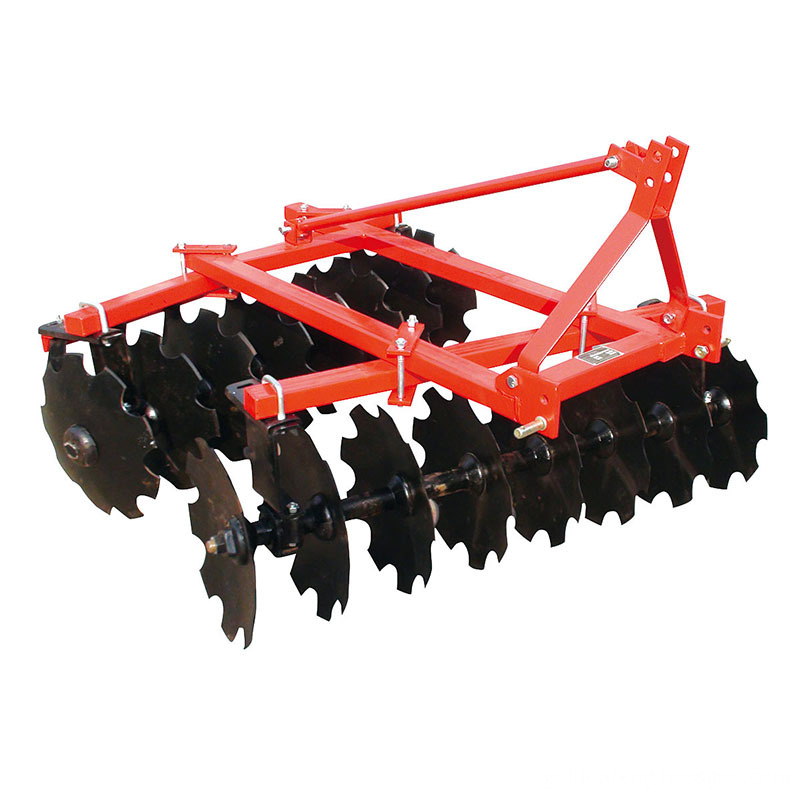

Product name |
|||||||
|
Model |
1BQX-1.1 |
1BQX-1.3 |
1BQX-1.5 |
1BQX-1.7 |
1BQX-1.9 |
1BQX-2.3 |
1BQX-2.5 |
|
Outline dimension(mm) |
1590×1230 |
1590×1440 |
1900×1550 |
1990×1820 |
2270×1900 |
2350×1980 |
2650×2060 |
|
Weight(KG) |
200 |
220 |
240 |
260 |
310 |
360 |
410 |
|
Working width(m) |
1.1 |
1.3 |
1.5 |
1.7 |
1.9 |
2.3 |
2.5 |
|
Matched power(kw) |
≥12 |
≥15 |
≥18.4 |
≥20.6 |
≥23 |
≥40 |
≥45 |
|
No. of discs(pcs) |
12 |
14 |
16 |
18 |
20 |
24 |
26 |
|
Pitch of discs(mm) |
230 |
||||||
|
Disc diameter(mm) |
460 |
||||||
|
Working depth(cm) |
10-14 |
||||||
|
Linkage |
Three suspension |
||||||
|

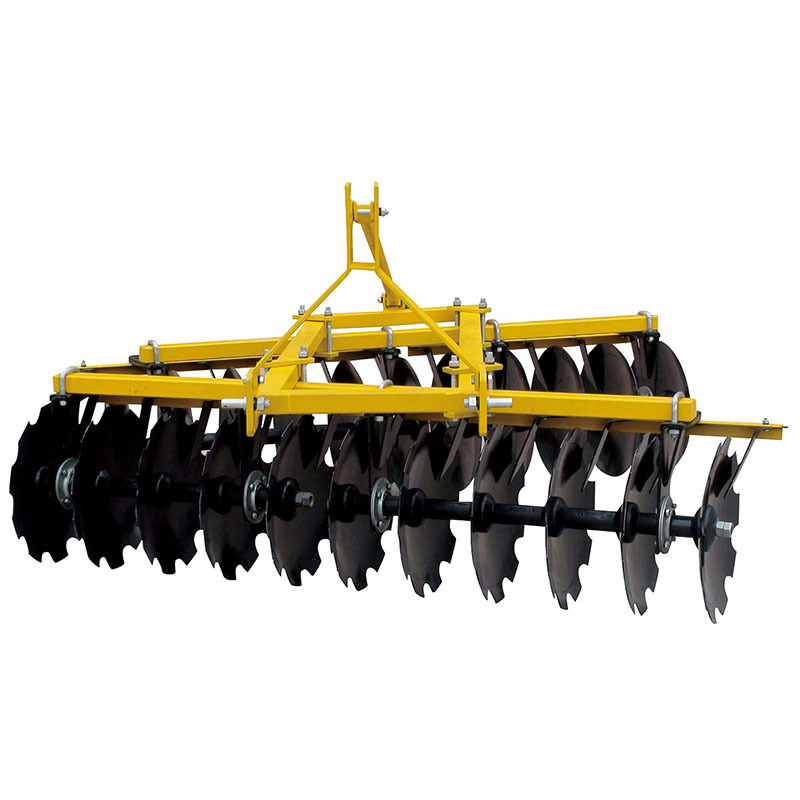

Product name |
|||||
|
Model |
1BJX-1.8 |
1BJX-2.0 |
1BJX-2.2 |
1BJX-2.4 |
1BJX-2.5 |
|
Outline dimension(mm) |
1850×2010×1320 |
1980×2240×1320 |
1980×2470×1320 |
2780×2470×1320 |
2970×2680×1460 |
|
Net weight(KG) |
390 |
434 |
463 |
604 |
760 |
|
Working width(m) |
1.8 |
2 |
2.2 |
2.4 |
2.5 |
|
Fitted power(kw) |
≥33 |
≥36.75 |
≥44.1 |
≥47.8 |
≥54.4 |
|
No. of discs(pcs) |
16 |
18 |
20 |
22 |
24 |
|
Pitch of discs(mm) |
230 |
||||
|
Disc diameter(mm) |
560 |
||||
|
Working depth(cm) |
10-14 |
||||
|
Linkage |
Three suspension |
||||
|

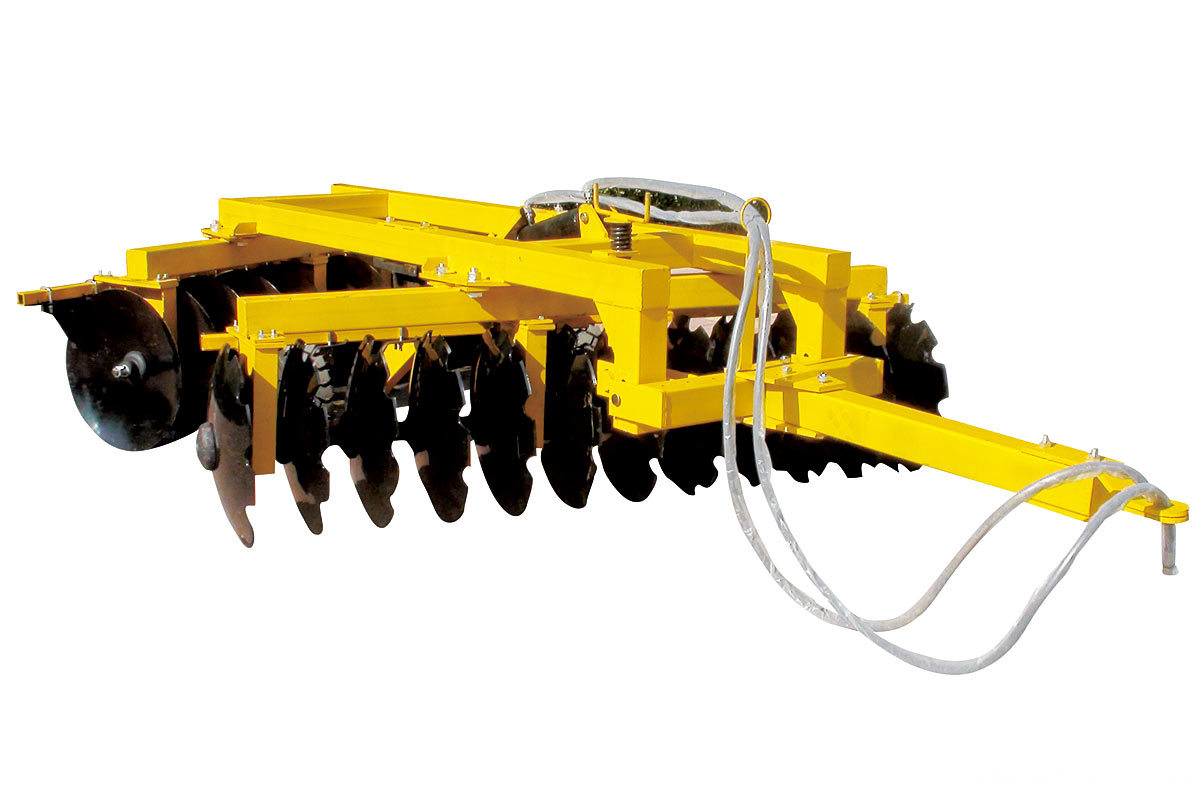

Product name |
Disc harrow (hydraulic offset heavy-duty type) |
||||
|
Model |
1BZ-2.2 |
1BZ-2.5 |
1BZ-3.0 |
1BZ-3.4 |
1BZ-4.0 |
|
Outline dimension(mm) |
5200×2310×1340 |
5320×2600×1340 |
5410×3030×1340 |
5550×3540×1340 |
6500×4100×1340 |
|
Weight(KG) |
1250 |
1350 |
1450 |
1550 |
1700 |
|
Working width(m) |
2.2 |
2.5 |
3 |
3.4 |
4 |
|
Matched power(kw) |
≥58.8 |
≥58.8 |
≥73.5 |
≥88.2 |
≥102.9 |
|
No. of discs(pcs) |
20 |
24 |
28 |
32 |
36 |
|
Pitch of discs(mm) |
230 |
||||
|
Disc diameter(mm) |
660 |
||||
|
Working depth(mm) |
≥180 |
||||
|
Linkage |
Trailed |
||||
Benifits:
-Applicable various brands of tractor such as YTO,FOTON LOVOL,JOHNDEERE,DF,WUZHENG,NEWHOLLAND,KUBOTA,JINMA ,MASSEY FERGUSON and so on.
-it can be directly mounted to or trailed by the tractor.
-It can be improved and manufactured according to your requirement.
Q1: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. The products enjoy good sale not only in domestical market ,but also in the foreign countrys like USA,Russia,Sudan,Thailand,Nigeria,Ghana and etc.The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
Q2: Where is your factory located? How can I visit there?
Our factory is located in Jining City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q3: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q4: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Irrevocable L/C at sight could be also accepted.
Q5: What's the Payment terms?
FOB, the price of the implement without sea shipment costs.
CIF, including the unit cost + marine insurance + Shipment charges to your destination port.
CFR, including the unit cost + Shipment charges to your destination port.
Q6: At which port do you usually ship the good?
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q7. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.
Our service:
· Professional Sale Team to help you in whole purchase process, help you solve the language communication problems, help you finish the procedure of booking the ship, delivery, clean the customs.
· Perfect after-sale Constitution to solve each items after sale to meet the need from customers.
· Keep the Good quality and On-time Delivery.
